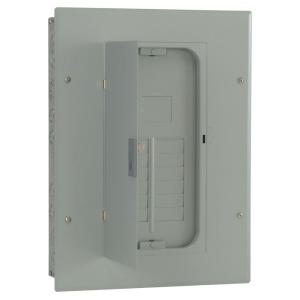

GE PowerMark Gold 125 Amp 14-Space 24-Circuit Main Lug Load Center

GE PowerMark Gold 125 Amp 14-Space 24-Circuit Main Lug Load Center (Indoor)


GELC125-24

Available in increments of 1
Quantity
Total Percent Off Per Unit
1
$54.80 0% $54.8000
2
$104.12 5% $52.0600
5
$246.60 10% $49.3200
$465.80 15% $46.5800
$876.80 20% $43.8400
$1,068.60 25% $41.1000
$3,836.00 30% $38.3600





Coleman Air







PRODUCT DESCRIPTION

The GE PowerMark Gold 125 Amp 14-Space 24-Circuit Main Lug Load Center is a single-phase, 3-wire load center with a factory-installed main lug. The unit may be converted to a main breaker and offers top or bottom feed. The center is designed and built for faster installation and a more dependable performance with a maximum load of 240 volts. This unit is compatible with standard GFCIs, AFCIs and GE circuit breakers. The UL-listed load center has holes rated 100% split neutral on each side that are compatible with #14-4 wire..


  • Use as a main lug load center or convert to a main breaker
  • Galvanized box for rust resistance with a self-adjusting dead front cover
  • Copper bus for increased conduction
  • Full-length neutral bars for faster and easier wiring
  • 100% split neutral holes on each side are rated for #14-4 wire
  • Top or bottom feed Accepts standard GFCI and AFCI circuit breakers
  • Compatible with GE circuit breakers
  • ANSI certified and UL listed
  • MFG Part # : TLM1212CCUP

SPECIFICATIONS



ANSI Certified  Yes  Assembled Depth (in.)  5.5 in
Assembled Height (in.)  21.1 in  Assembled Width (in.)  16.0 in
CSA Listed  No  Electrical Product Type  Load Center
Indoor/Outdoor  Indoor  Item Package Type  Cardboard Container
Load Center Type  Main lug  Load center depth (in.)  3.375
Load center height (in.)  16  Load center width (in.)  14
UL Listed  Yes Maximum Amperage (amps)  125 A
Maximum Voltage  240 V  Mounting type  Plug In
Number of Spaces  12.0  Number of phases
Product Weight (lb.)  19.229  Returnable  90-Day





The image above demonstrates how to use a standard A/C load center as a solar combiner box. The unit pictured may or may not be the same as the one being sold on this page, it is shown for reference purposes only. Please see the top of this page for a picture of the item being sold thru this page. Click here for more information on wiring solar panels using this method.
