Coleman Air C75-PWM Controller


Click on image for full size
Coleman Air C75-PWM 75A 12/24/48V Wind/Solar Controller
Coleman Air C75-PWM 75A 12/24/48V Wind/Solar Solid State
PWM Charge Control with Diversion mode.
Rated at: 75A solar, 71A diversion.
Includes one LCD Remote menu module
Designed for both wind and solar.
Over-current protected.

C75-PWM

Available in increments of 1
Quantity
Total Percent Off Per Unit
1
$395.00 0% $395.0000
2
$750.50 5% $375.2500
5
$1,826.88 7.5% $365.3750
$3,357.50 15% $335.7500
$6,517.50 17.5% $325.8750
$7,900.00 20% $316.0000
$14,812.50 25% $296.2500
$28,637.50 27.5% $286.3750


Coleman Air

Coleman Air C75-PWM

75 Amp, 12/24/48V Wind/Solar/Hydro

Solid State - PWM Charge Control

(71 amps diversion mode)


With Remote Menu Module



This solid-state (no relays or solenoids) charge controller has been specifically designed for medium sized solar or turbine, battery based alternate energy systems of up to 75 amps. The Coleman Air C75-PWM uses four high-power mosfets, in a back-to-back configuration, allowing a significant increase in total current handling capability over competing models in this price range.

Use this controller to regulate and prevent battery overcharge in:

  • Solar Systems
  • Wind Systems
  • Hydro Systems



Some of the key features of this controller are:
  • Microprocessor controlled -- This is very important for both stability and functionality.
  • Solid-State. No relays or solenoids to wear out.
  • PWM (Pulse Width Modulation) charging.(Charges or Diverts using pulses of current in varying lengths)
  • Three stage charging for better battery life.
  • Both manual and automatic (30 day) equalize function.
  • User changeable settings -- Via an easy to use menu system.
  • High amp rating – 75 amps solar mode or 71 amps in the diversion mode.
  • Over-current and overheat protection.
  • Automatic System Voltage detection. No jumpers to set, the controller will automatically detect your battery bank's nominal voltage.
  • Works as either a solar charge controller (series), or a diversion controller for wind/hydro systems. The controller will automatically sense the appropriate mode.
  • No blocking diodes are required. The back-to-back mosfets prevent reverse leakage.
  • A PWM controller that adapts its pulse logic to perfectly accommodate wind systems.

Note: Continuous power handling may be reduced in hot climates or installations.

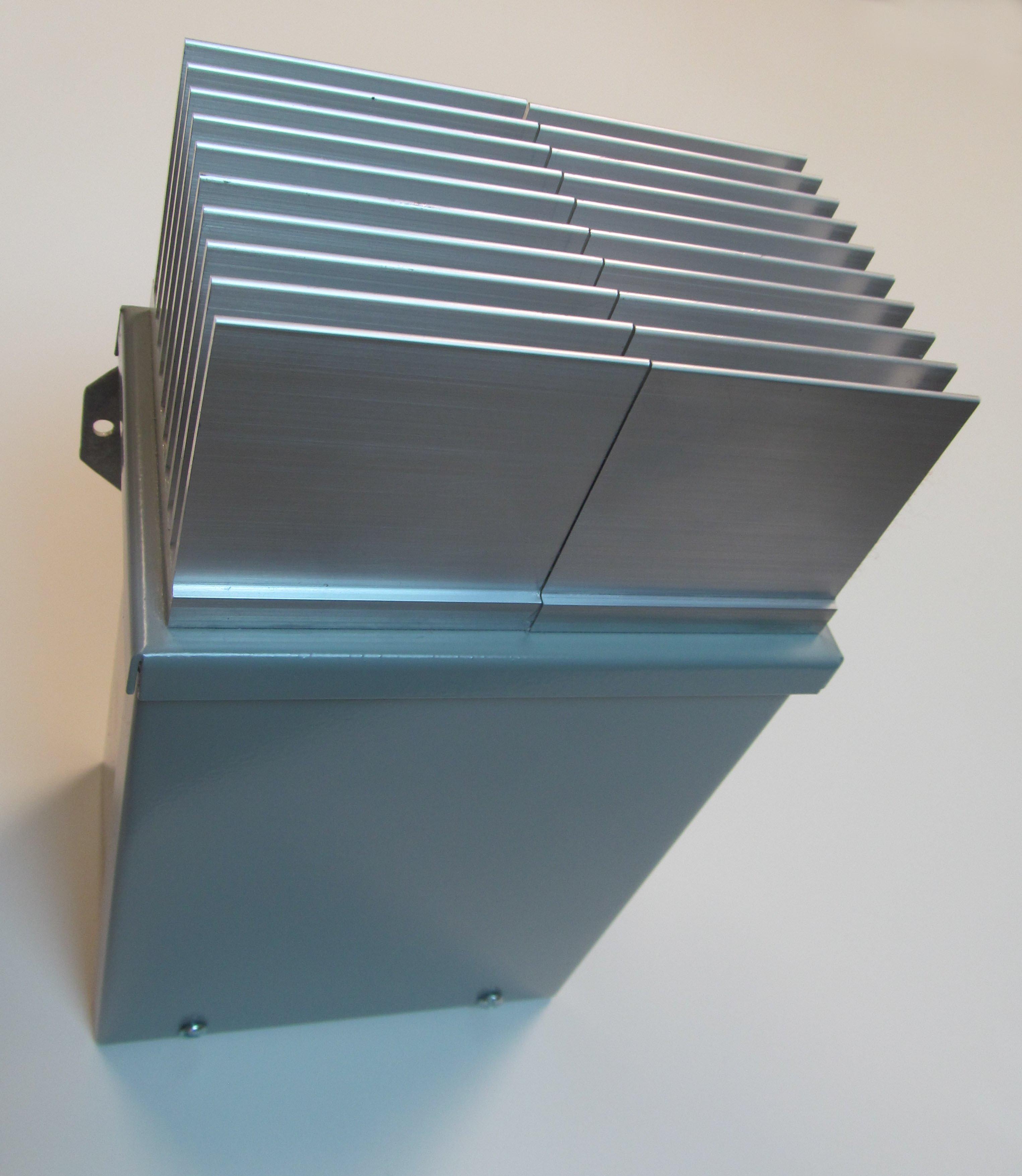

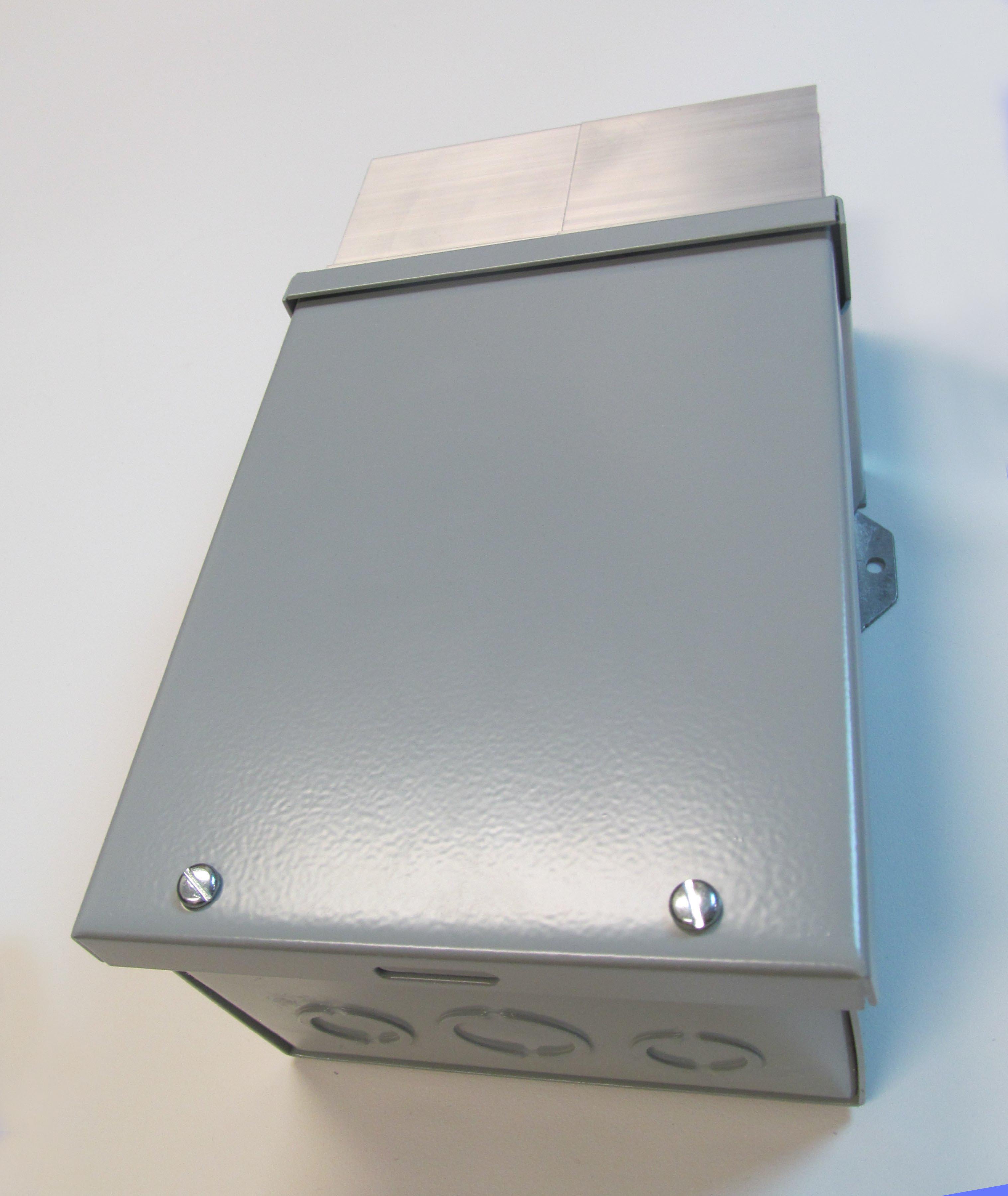

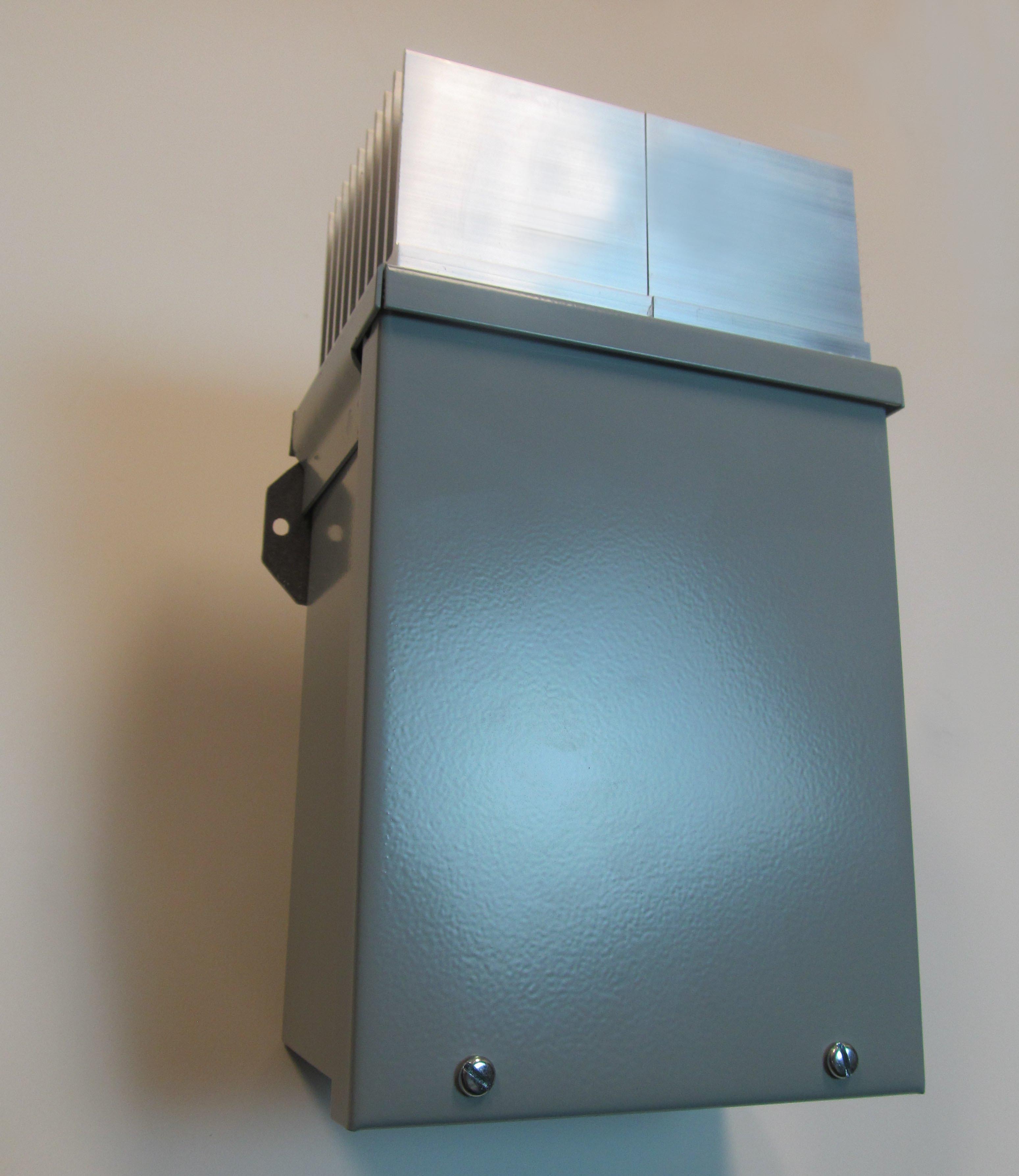

The enclosure is heavy gauge, solid steel, ready to mount. -- No plastic, no junk, simple and rugged.





The C75 is mounted in a Nema-3R enclosure which allows it to be mounted outdoors.
The fully sealed enclosure also provides a level of EMP and static discharge protection.
Please see the manual for more details.







Four very powerful mosfets are used to insure plenty of reserve capacity above the rated 75 amps this controller has been designed to handle. The mosfets are arranged in such a manner that they can handle currents in either direction; that is, they can perform in the capacity of a solar charge controller or a diversion mode controller. The controller automatically determines the proper mode of operation. If the controller senses that there is voltage on the “Solar/Diversion” terminal then it assumes that the controller has been wired as for the solar mode. If there is no voltage present on this terminal, then the diversion mode will instead be chosen. This terminal is checked often by the microprocessor to insure the controller selects the proper mode. If no connection has been made to the “Solar/Diversion” terminals, then the mode may be either.








Ready to go. built to last, right here in the USA.



The C75-PWM can work with 12,24 and 48 volt systems. The C65-PWM is 12 and 24V only.











The C75-PWM can work with 12,24 and 48 volt systems. The C60/C65-PWM is 12 and 24V only.

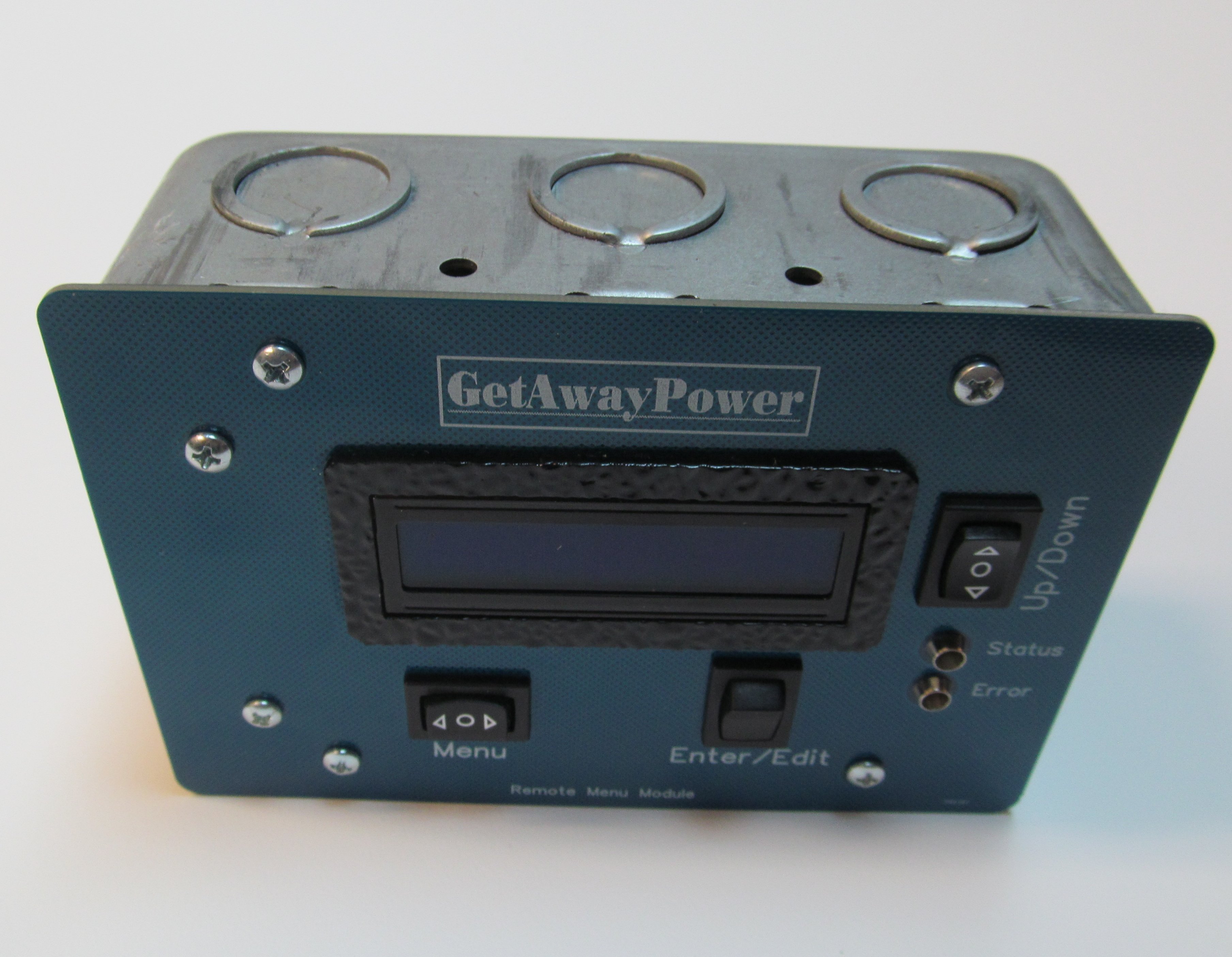

The remote menu module can be installed up to 20 foot away from the main controller. A 10' cord is included.

You may use a standard CAT-5 Ethernet cable for longer distances. A shielded cable is preferred for longer distances.


*****

Processor Hookup

Menu and USB Serial Output (Data logging Stream).

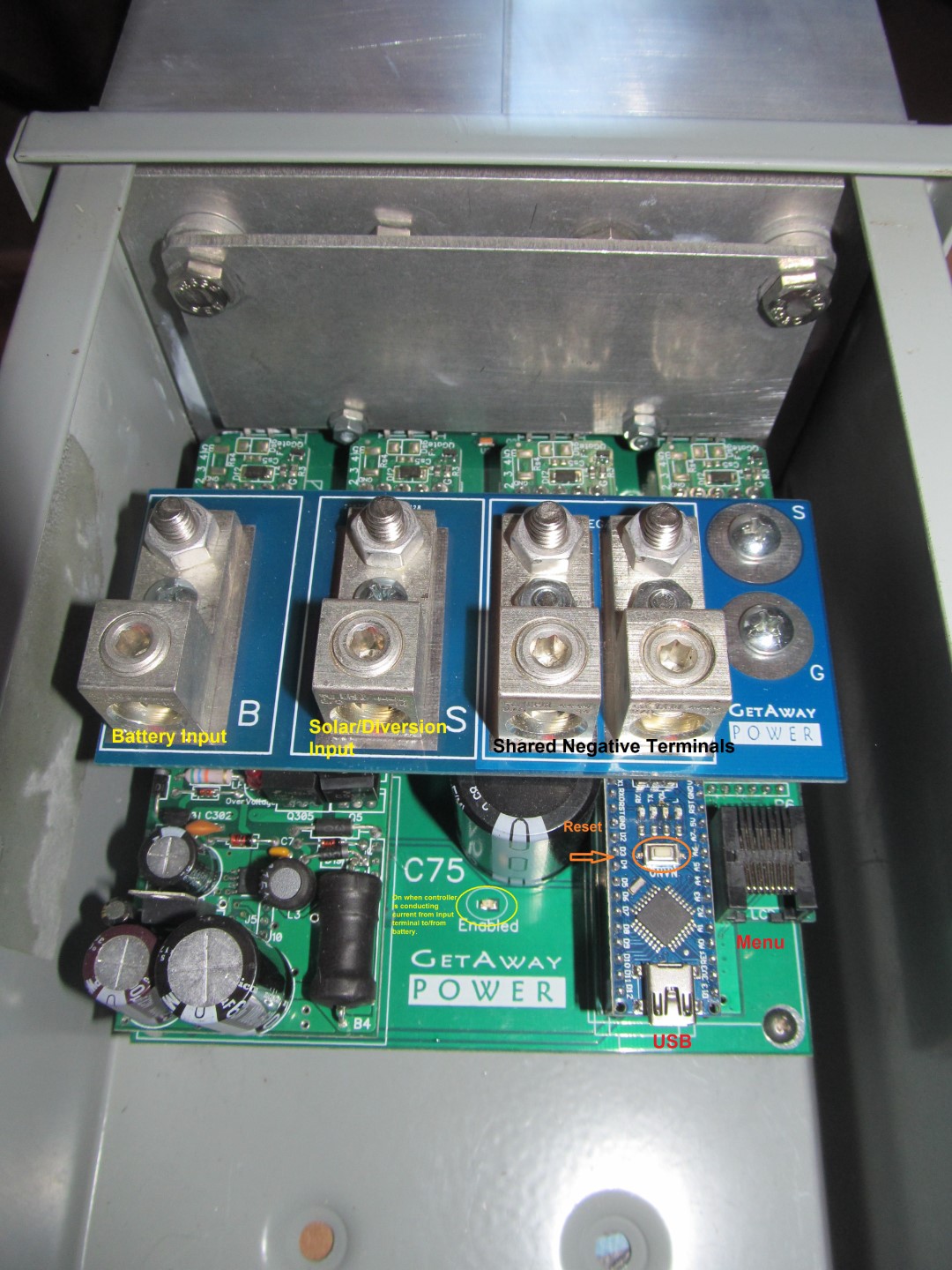

Inside the C75-PWM

Inside the C75-PWM


****
