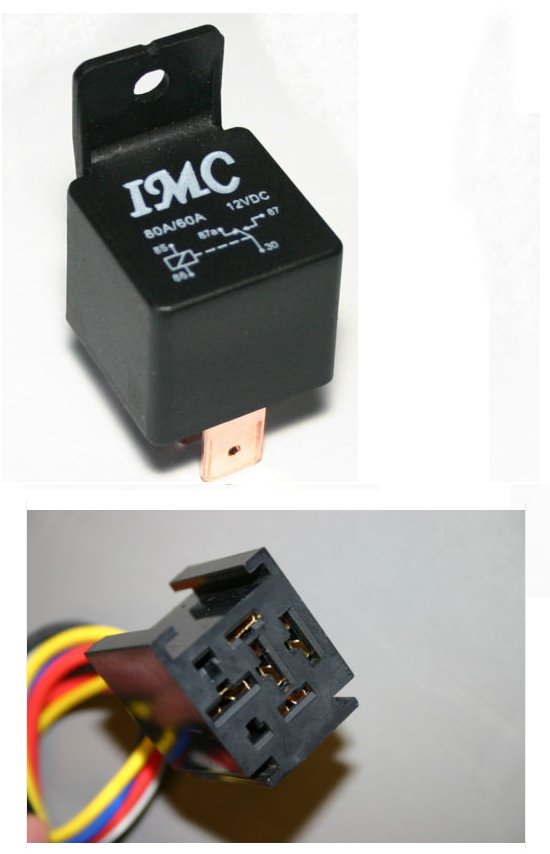

12 Volt, 60/80 Amp Relay and Socket
12 Volt, 60/80 Amp Relay and Socket
RS6080A
Pricing
Available in increments of 1
Quantity
 Total Percent Off Per Unit
1
 $21.22 0% $21.2200
2
 $40.32 5% $20.1590
5
 $98.14 7.5% $19.6285
$180.37 15% $18.0370
$350.13 17.5% $17.5065
$424.40 20% $16.9760
$795.75 25% $15.9150
$1,538.45 27.5% $15.3845

Coleman Air



RELAY AND SOCKET SPDT 12 VOLT 60/80 AMP HEAVY DUTY 5 WIRE

Add more relays to your Coleman Air Controller or use this relay in hundreds of other DC applications.
e © AP
8 inch -- 12, 14 and 16 AWG WIRE INTER-LOCKABLE HARNESS





Contacts:
80 Amps Normally Open - Up to 30 volts DC
60 Amps Normally Closed - Up to 30 volts DC

Coil:
12 to 15 volts DC


This is the same relay and harness that ships with the new Coleman Air C160M and is fully compatible with our kits. They handle twice as much current as the standard 30/40 amp relay, yet are easily energized using our kit boards.



Please note: We rewire these harnesses with the following color code for direct use with our controllers.



Red wire = Center post (common)
Black wire = Normally open contact (N/O)
White wire = Normal closed contact (N/C)
Blue and Yellow wire = Relay Coil.
