Coleman Air C60-PWM Controller

Click for Details
Coleman Air C65-PWM 65A 12/24V Wind/Solar Solid State - PWM Charge Control
Wind/Solar Solid-State PWM Solar/Wind Charge Controller.
New ** 65 Amp 12 or 24 volts.
High contrast LED volt meter with on/off switch.
Designed for both wind and solar.
Reverse polarity, over-voltage, over-current protected.

Click here to download the manual


Available in increments of 1
Total Percent Off Per Unit
$164.59 0% $164.5900
$312.72 5% $156.3605
$761.23 7.5% $152.2457
$1,399.02 15% $139.9015
$2,715.74 17.5% $135.7868
$3,291.80 20% $131.6720
$6,172.13 25% $123.4425
$11,932.77 27.5% $119.3277

Coleman Air

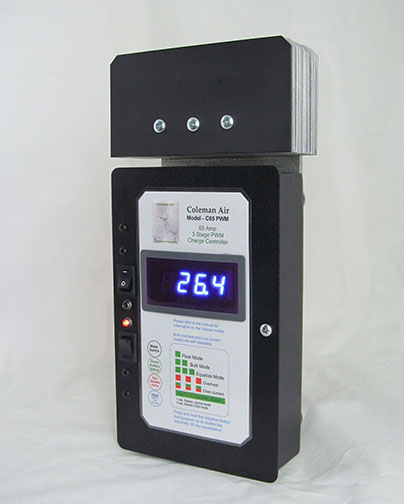

Coleman Air C65-PWM 65A 12/24V Wind/Solar Solid State - PWM Charge Control

65 Amp - Solid State PWM Charge Controller

The C65-PWM has Larger Fins and more efficient Mosfets!

With High Contrast Volt Meter


Works directly with 12 or 24 volt systems


This solid-state (no relays or solenoids) charge controller has been specifically designed for medium sized solar or turbine, battery based alternate energy systems of up to 65 amps. The Coleman Air C65-PWM uses two high-power mosfets (230 amps each), in a back-to-back configuration, allowing a significant increase in total current handling capability over competing models in this price range.

Use this controller to regulate and prevent battery overcharge in:

  • Solar Systems
  • Wind Systems
  • Hydro Systems


    Some of the key featuresof this controller are:


    • Microprocessor controlled -- This is very important for both stability and functionality.
    • Solid-State. No relays or solenoids to wear out.
    • PWM (pulse width modulation) charging.(Charges using pulses of varying lengths)
    • Three stage charging for better battery life.
    • Both manual and automatic (30 day) equalize function.
    • User changeable settings -- Several controllers on the market set the voltage levels, and that's that!
    • High amp rating – 65 amps solar mode or 65 amps in the diversion mode.
    • Over-current, over-voltage and overheat protection.
    • Multiple system voltage settings – Easy to set jumper allows use on 12 or 24 volt systems.
    • High Contrast LED battery voltage meter.
    • On/Off switch for the meters to allow extremely low idle current.
    • Battery and charge status LEDs- Several controllers do not tell you what's going on - This one does!
    • Push to test. - Ever wonder if your controller & load are working OK?
    • Reverse polarity protected – This unit will not be damaged if you inadvertently reverse the inputs.
    • Steel enclosure - with multiple conduit openings and cooling vents
    • Large terminals - that can actually terminate large wire, with lugs that accept up to #2 wire.
    • Extended diversion mode (EDM.)
    • Works as either a solar charge controller (series), or a diversion controller for wind/hydro systems. The controller will automatically sense the appropriate mode.
    • Passive cooling systems uses aluminum cooling pipes that run the length of the unit for continuous cooling of the entire unit allowing for proper operation at high power levels.
    • No blocking diodes are required for solar. The back-to-back mosfets prevent reverse leakage.
    • A PWM controller that adapts its pulse logic to perfectly accommodate wind systems.

    Note: Continuous power handling will be reduced in hot climates or installations.



    The micro processor is the heart of the controller. The battery level is constantly checked by the microprocessor and compared to the active mode’s (Float, Bulk or Equalize) set point to determine how much (if any) current should flow into or out of the batteries. As the battery’s level of charge increases, so does the voltage of the battery (the battery’s level of charge can be determined by the voltage of the battery.) As the charge level increases the controller may use very short pulses of energy to “top off” or maintain the charge at the optimum level. These pulses of energy will be of varying lengths as required. This charging algorithm is referred to as pulse width modulation (or PWM), and when properly controlled, offers a very suitable method of charging deep cycle batteries to ensure good battery health and longevity.




    Settings are of course user changeable! By simply turning the set point potentiometers with a small screwdriver, you can quickly adjust the trip point for the float or bulk mode. (Equalize mode is about 7% higher then the bulk mode).




    Two very powerful 230A mosfets are used to insure plenty of reserve capacity above the rated 65 amps this controller has been designed to handle. The mosfets are arranged in such a manner that they can handle currents in either direction; that is, they can perform in the capacity of a solar charge controller or a diversion mode controller. The controller automatically determines the proper mode of operation. If the controller senses that there is voltage on the “Solar/Diversion” terminal then it assumes that the controller has been wired as for the solar mode. If there is no voltage present on this terminal, then the diversion mode will instead be chosen. This terminal is checked often by the microprocessor to insure the controller selects the proper mode. If no connection has been made to the “Solar/Diversion” terminals, then the mode may be either.



    The enclosure is heavy gauge, solid steel, ready to mount. -- No plastic, no junk, simple and rugged.

    This custom made enclosure allows for two amply sized conduits on the bottom as well as vents on the top side. The box measures 5.1" (W) x 8" (H) x 2" (D) . The electronics are fully isolated from the box.


    The backside of the enclosure contains a solid plate of 1/8" aluminum tied directly to the main internal heat sink, which effectively dissipates the heat from the two high power mosfets




    Click here to download the C60-PWM Charge Controller Manual.


    Ready to go. built to last, right here in the USA.



    Click here to download the C60-PWM Charge Controller Manual.

    Click here to download the C60-PWM Charge Controller Manual.

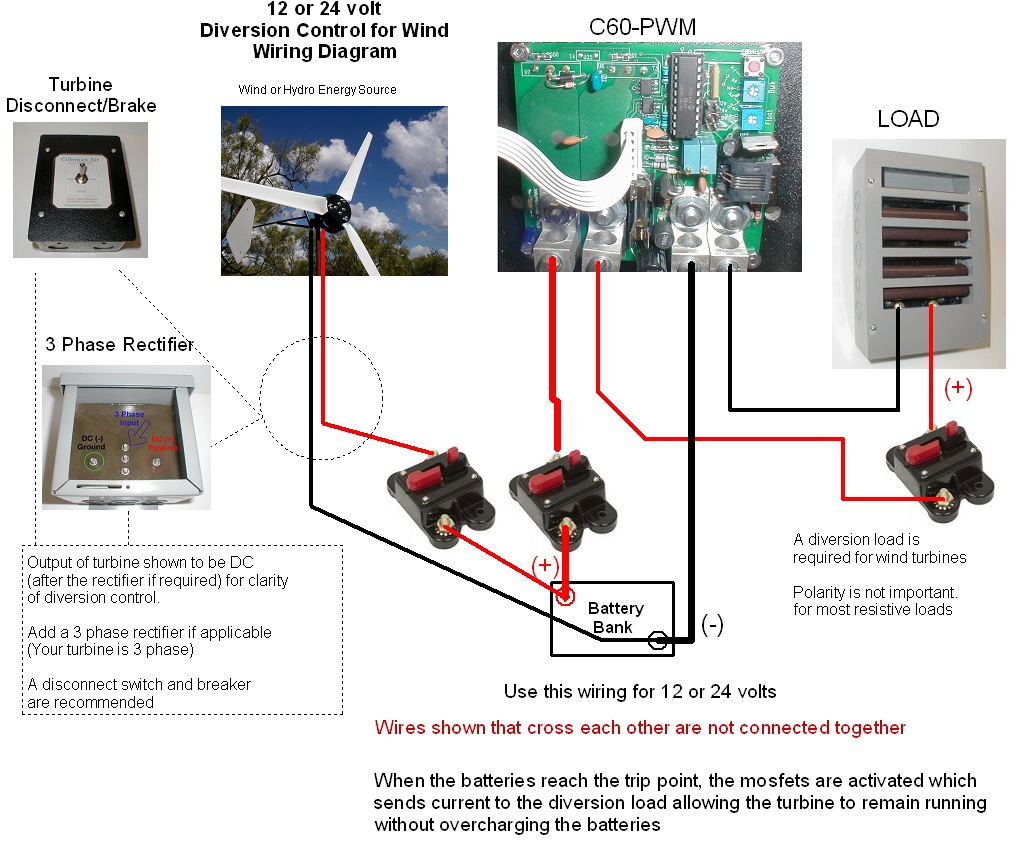

    Three Phase turbine wiring diagram





    Shipping And Returns
    Our shipping charges are basically what it cost us to ship. International shipping rates via the USPS for this weight are much higher than you might expect. Please click HERE to view just how much these charges are, and you will see that our rates are just what it cost. We would charge less, if it cost us less.

    Due to major delays in customs, we no longer ship to Italy.

    To our International customers. We cannot misrepresent the price of the products being shipped to you. You are responsible for any and all tariffs, duties or import fees imposed by your country or customs.

    Returned items must be in their original condition and fully resalable. Returns may incur a 20% restocking fee. Damages that occur during return transit will be liable to the buyer. Buyer is responsible for all tariffs, customs fees, VATs.





    By popular request, here are a few documents that show just how all of these components tie together.



    If you have any questions, please do not hesitate to ask, we are happy to help.

    Thanks For Looking!

    Coleman Air -- Empowering Innovation

    Wind and Solar Controllers, Electronics, Hardware & Accessories perfect for the DIY'er.



     Empowering Innovation


    Click here to download the manual
