100 V Volt D/C Blue Digital Panel Meter 2 Gang Box 12v, 24v, 48v battery banks

100 V Volt D/C Blue Digital Panel Meter 2 Gang Box 12v, 24v, 48v battery banks

MD100V2G

Available in increments of 1
Quantity
Total Percent Off Per Unit
1
$54.41 0% $54.4100
2
$103.38 5% $51.6895
5
$244.85 10% $48.9690
$476.09 12.5% $47.6088
$924.97 15% $46.2485
$2,244.42 17.5% $44.8883
$4,352.80 20% $43.5280



Coleman Air

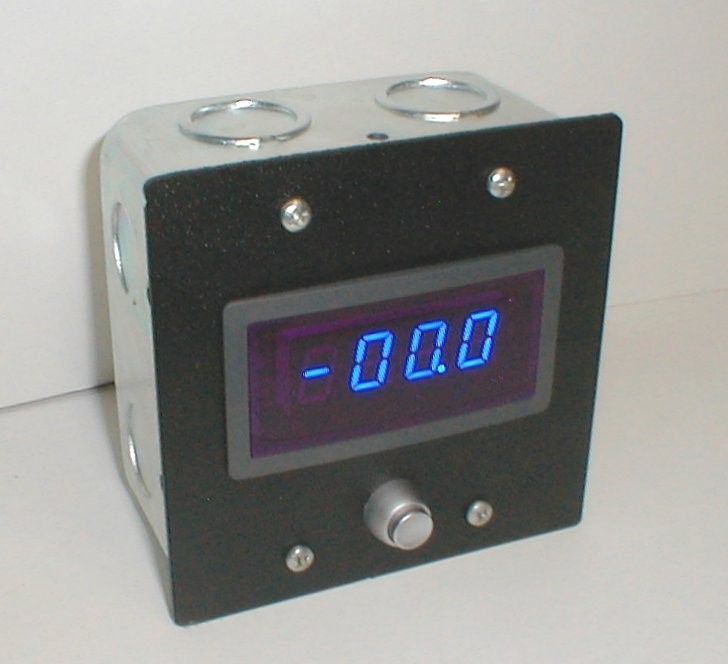

100 V Volt D/C Blue Digital Panel Meter 2 Gang Box 12v, 24v, 48v battery banks

Digital Volt Panel Meter

With two gang switch box and shunt



100 Volt DC Digital Blue LED Display

With On/Off switch



Finally an affordable, ready to go amp volt for your alternate energy system.



This meter does not need a separate power supply





A highly-efficient yet flexible volt meter which can be used to measure battery or charge voltages in 12, 24 and 48 volt alternate energy systems as well as many other systems including industrial monitoring. No separate power supply is needed! This meter has been designed specifically for alternate energy systems; yet, it also perfect for measuring vehicle, yacht, electric toy, tool or motorcycles having a 12V, 24V or 48V storage batteries.

Advantage over other panel meters by competitors:

  • Compared with LCD panel meters, this LED panel meter has a high contrast display with super clear numbers and wide viewing angle.
  • Super convenient operation (DOES NOT need an additional power supply.) Hook up the leads and you are set.
  • On/Off Switch -- This meter uses only 30ma to 60ma ( .03 to .06 amps) at 24 volts, or approx. 10ma at 48 volts. If you are like many of us who simply do not like wasted energy, regardless of how small it is, then you will love this meter, as you can simply shut if off when you are not using it.
  • Good looking, black matte solid metal face plate
  • Can be flush mounted with our without the included dual gang switch box.



Features:

  • Large (0.56”/14.2mm) easy-to-read blue LED display.
  • Wide application range. Can be used to measure the voltage of various batteries ranging from 7.5 to 100VDC.
  • Successive approximation-based AD conversion, which is fast and accurate.
  • Highly-efficient DC-DC converter, with very low temp rise.
  • Completely isolated, super efficient, custom made switch mode power supply.
  • Reverse polarity protection..

Specifications:

  • Min Input voltage : 8.5vdc
  • Max Input voltage: 120 volts (D/C)
  • 4.2" (W) x 4.2" (H) x 2.2" (D)



There is a big difference in this unit's internal power supply and the ones you will see being advertised for powering panel meters.

  1. Most "meter" supplies you find use a low cost linear voltage regulator. This is completely useless for 48 volt systems, and on 24 volt systems, you better have a big heat sink and expect to use about 1 amp of power just running a single meter. This supply uses a super efficient high voltage switching regulator, this is not cheep, but it is necessary!
  2. This supply uses a super efficient pre-regulator to allow higher than normal incoming voltages to properly handle 48 volt systems in an overcharged state or that are receiving high incoming charge voltages. This you will not find (that we are aware of) anywhere for any direct powered meter in this price range.



Hookup two wires and you are ready to go. Push the switch to turn the meter on. Push again to shut if off. That's about it, super simple, yet super functional!


Click here to download the manual







Shipping And Returns
Our shipping charges are basically what it cost us to ship. International shipping rates via the USPS for this weight are much higher than you might expect. Please click HERE to view just how much these charges are, and you will see that our rates are just what it cost. We would charge less, if it cost us less.

Due to major delays in customs, we no longer ship to Italy.

To our International customers. We cannot misrepresent the price of the products being shipped to you. You are responsible for any and all tariffs, duties or import fees imposed by your country or customs.

Returned items must be in their original condition and fully resalable. Returns may incur a 20% restocking fee. Damages that occur during return transit will be liable to the buyer. Buyer is responsible for all tariffs, customs fees, VATs.









By popular request, here are a few documents that show just how all of these components tie together.





If you have any questions, please do not hesitate to ask, we are happy to help.
