Coleman Air MP-40 MPPT Controller
|
Click on image for full size
|
|
|
Coleman Air MP-40 MPPT Charge Controller
MP-40 MPPT Charge Controller with Remote Menu
Buck & Boost Capable.
Designed for wind,hydro and solar. Over-current protected.
|
| MP-40 |
|
|
|
|
|
|
| | Coleman Air | | | | A truly unique EMP hardened MPPT charge controller featuring both buck
(voltage downshifting) and boost (up shifting) of input signals to
squeeze out the highest potential that your alternate energy source has to
offer. Works with solar, wind and hydro.
Description
- High efficiency buck/boost MPPT charge controller.
- Capable of boosting small input voltages up to 60 volts.
- Works seamlessly with Solar, Wind and Hydro inputs up to 100 volts.
- Fully digital remote user interface can be located in another room.
- Perfect for RV’s, Motor homes, trucks, cabins and small to medium solar or wind systems.
- Continuously streams CSV data via USB port, which can be viewed or stored.
- EMP Hardened. NEMA 3R, outdoor enclosure.
- No jumpers or potentiometers need to be set..
- Included Remote Menu Module, with 2 x 16 back-lit LCD display.
- Both manual and automatic equalize modes are available..
- Automatic nominal battery voltage detection, no setup required.
- Nearly all charge parameters can be managed through the user interface.
- Supports voltage and amperage calibration to fine tune performance.
- Optional high battery SSR module can be used to engage external diversion loads.
- Automatic LCD back light dimming to save energy.
- One year standard warranty against manufacturer defects.
- 12, 24 or 48-volt battery systems.
- 2400 watts continuous power with 48 volt systems, 1200 watts with 24 volt systems and 600 watts with 12 volt systems.
- Lockable cover, with standard conduit openings on bottom of box.
- Modular PCB Layout.
100W Mini-clipper is recommended for Wind/Hydro installations. It is not needed for Solar Installations.
The PWM module is recommended for Solar Installations and is optional for Wind/Hydro. The PWM module can greatly increase the efficiency of the unit when the input charge source matches the battery bank and does not require boosting or bucking.
MP-20-QuickStartGuide
Download the Full Manual

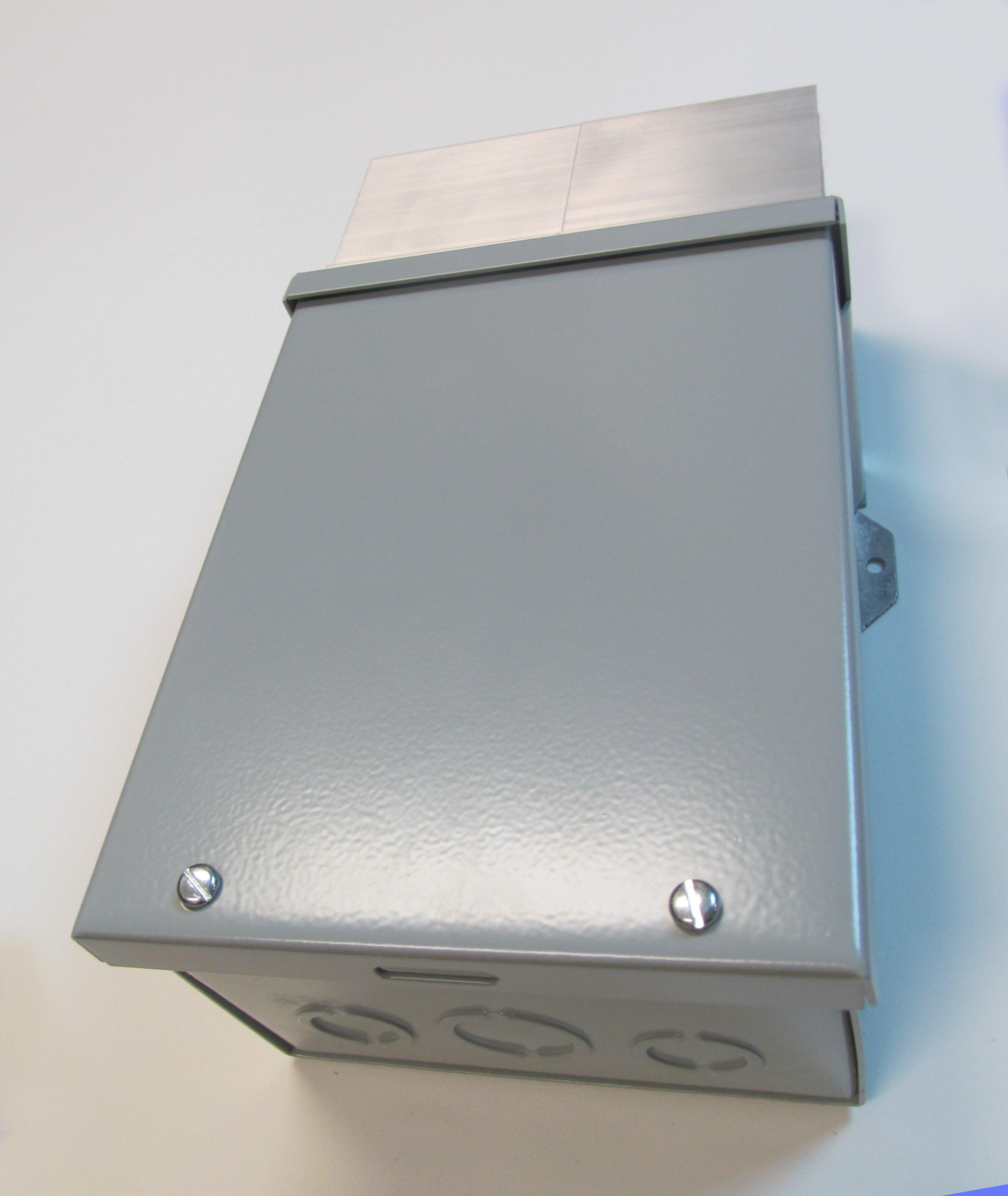

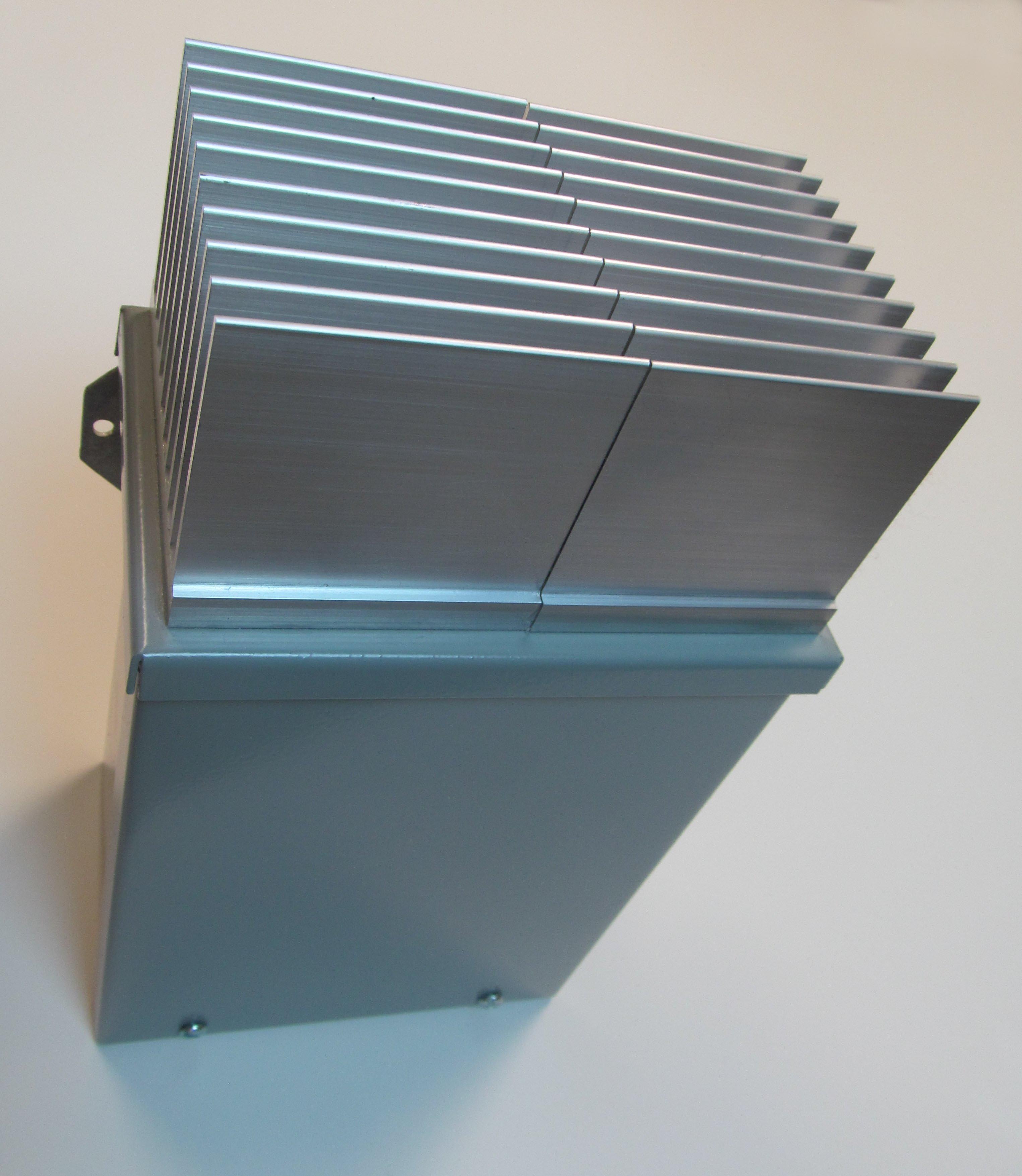

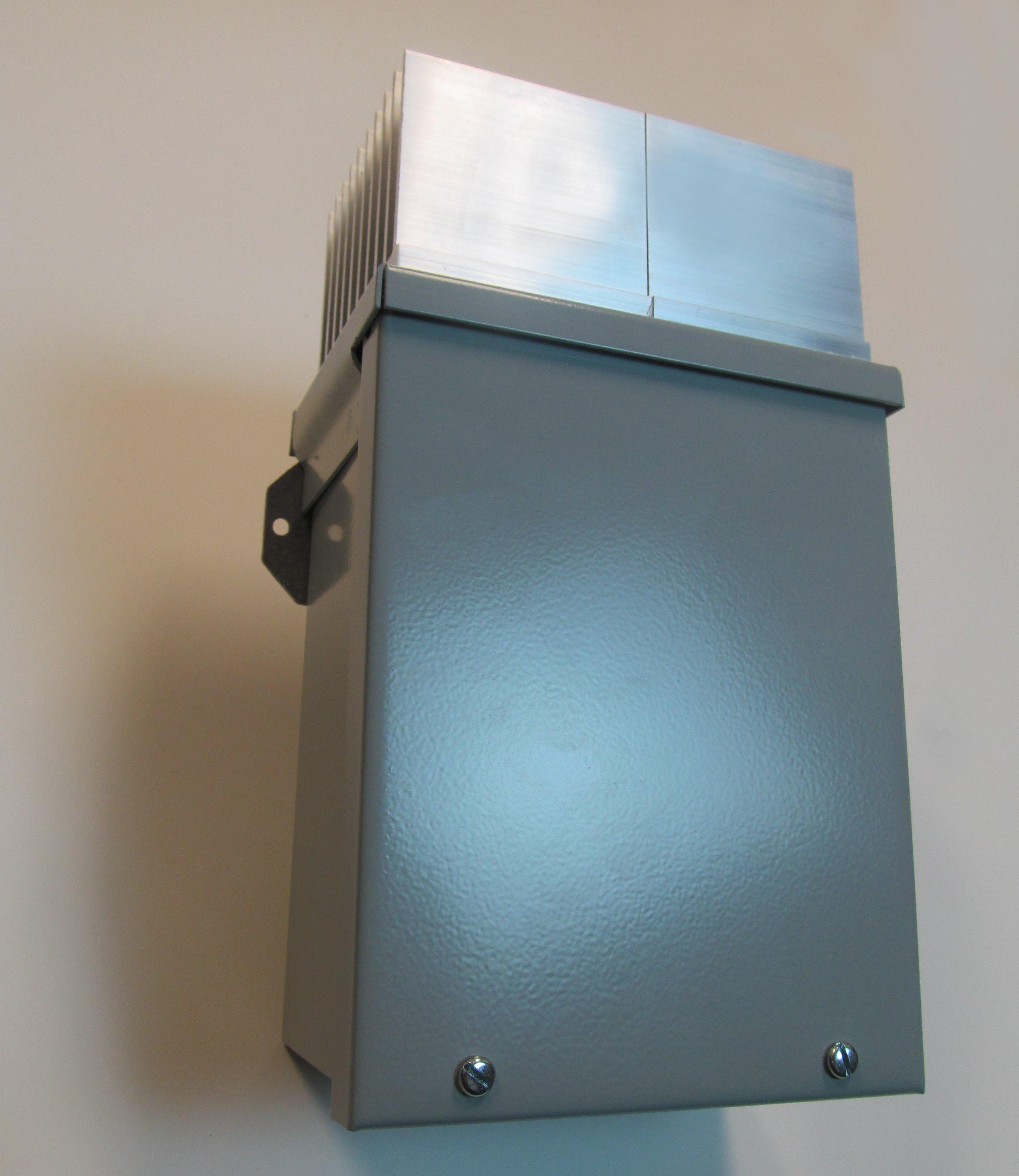

The enclosure is heavy gauge, solid steel, ready to mount. -- No plastic, no junk, simple and rugged.

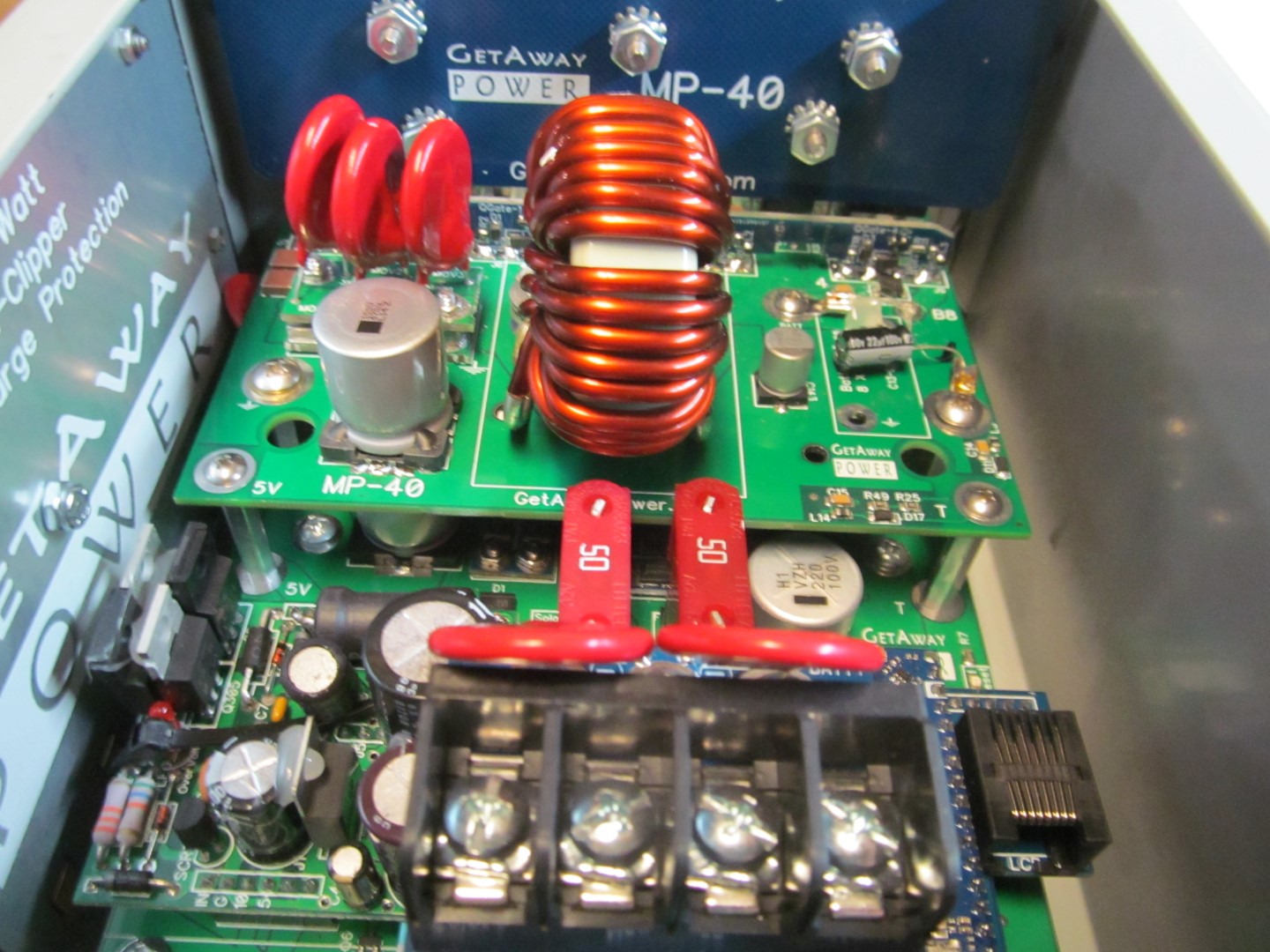

MP-40 Inside with 100W Mini-clipper.
|
|
---|

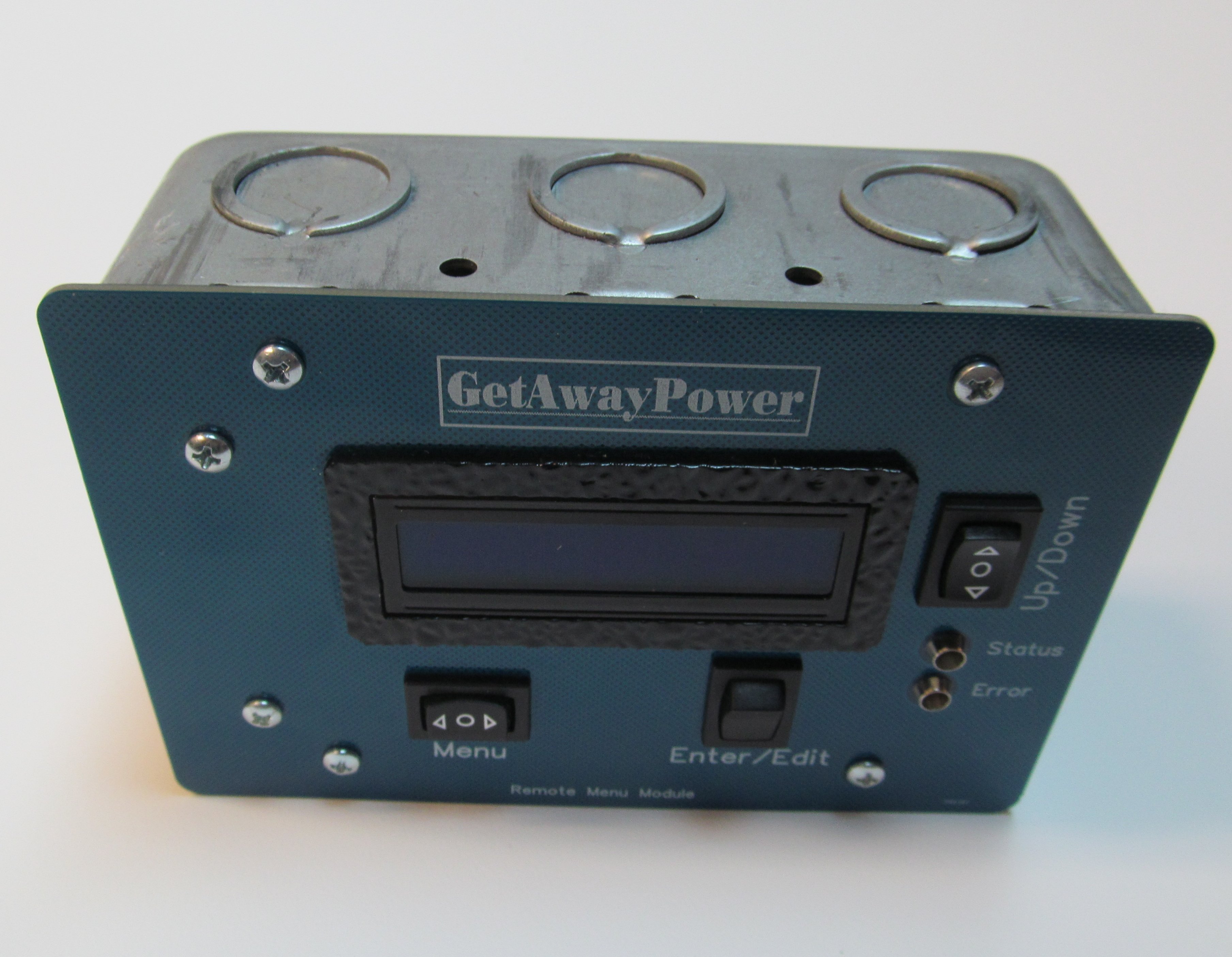

The remote menu module can be installed up to 20 foot away from the main controller. A 10' cord is included.
You may use a standard CAT-5 Ethernet cable for longer distances. A shielded cable is preferred for longer distances.
*****
Menu and USB Serial Output (Data logging Stream).

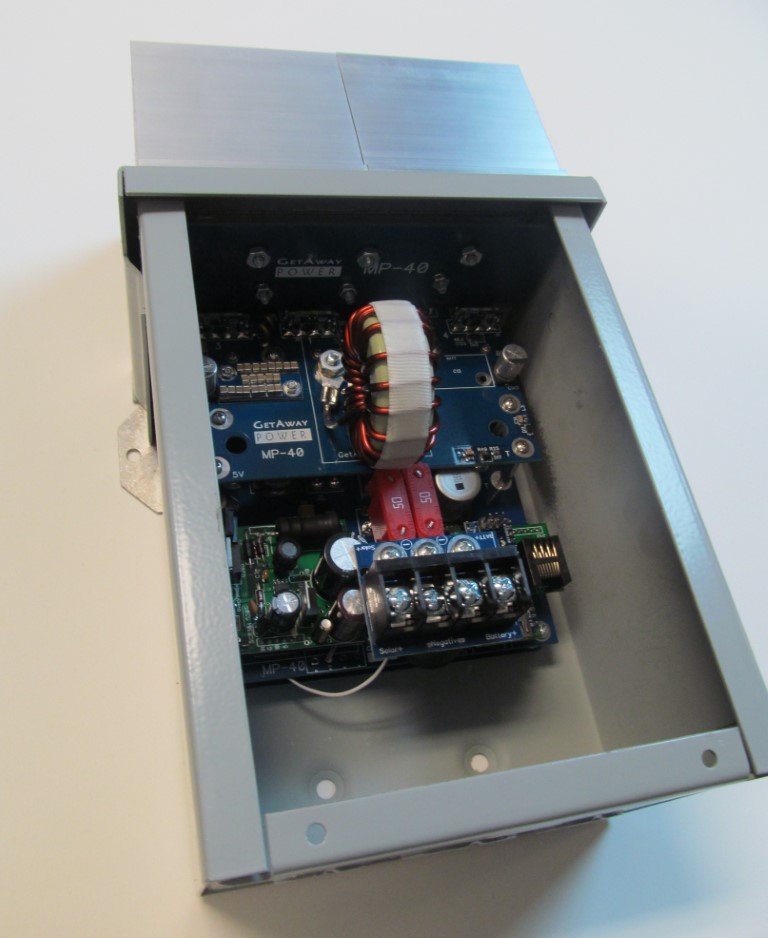

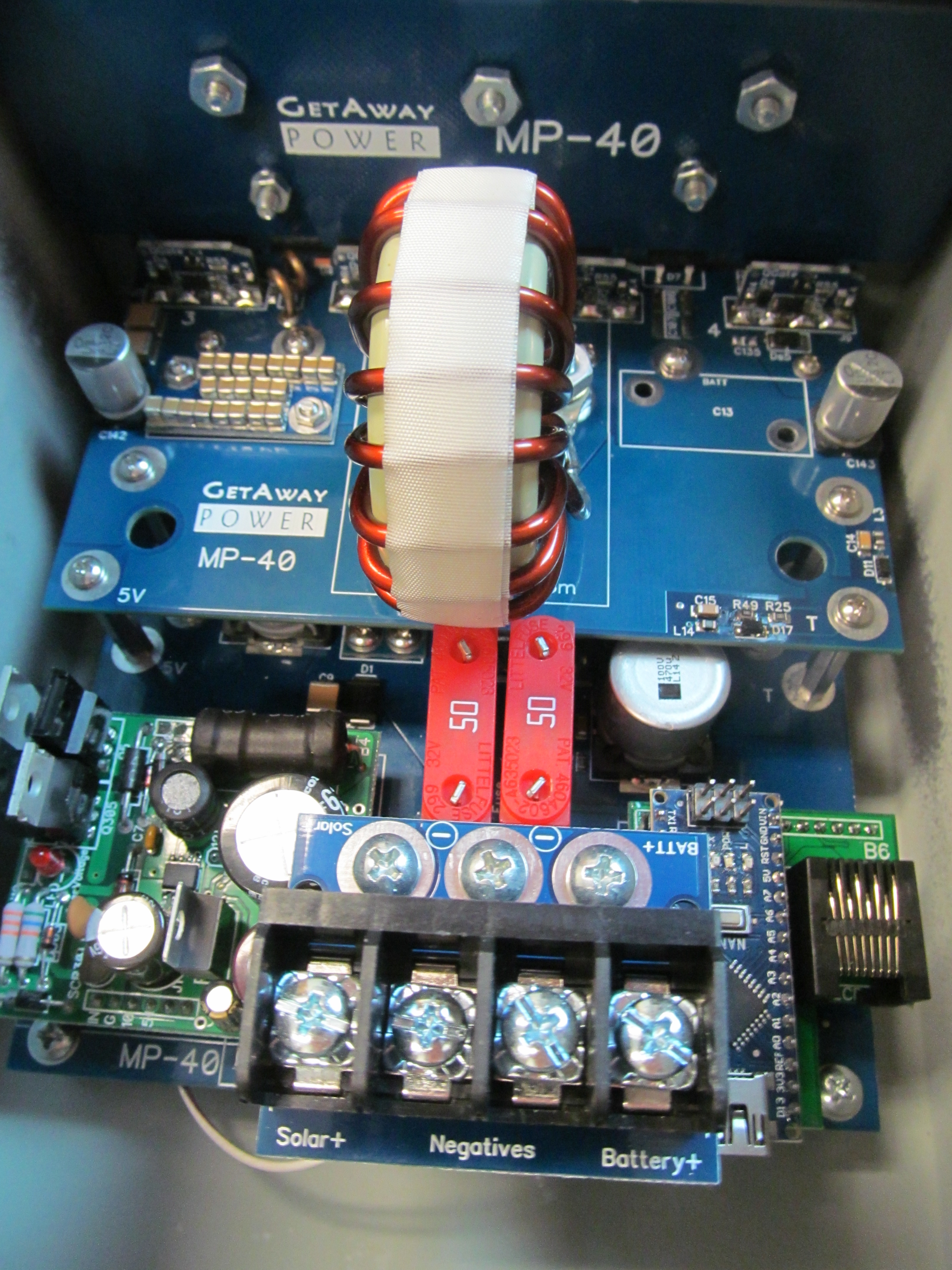

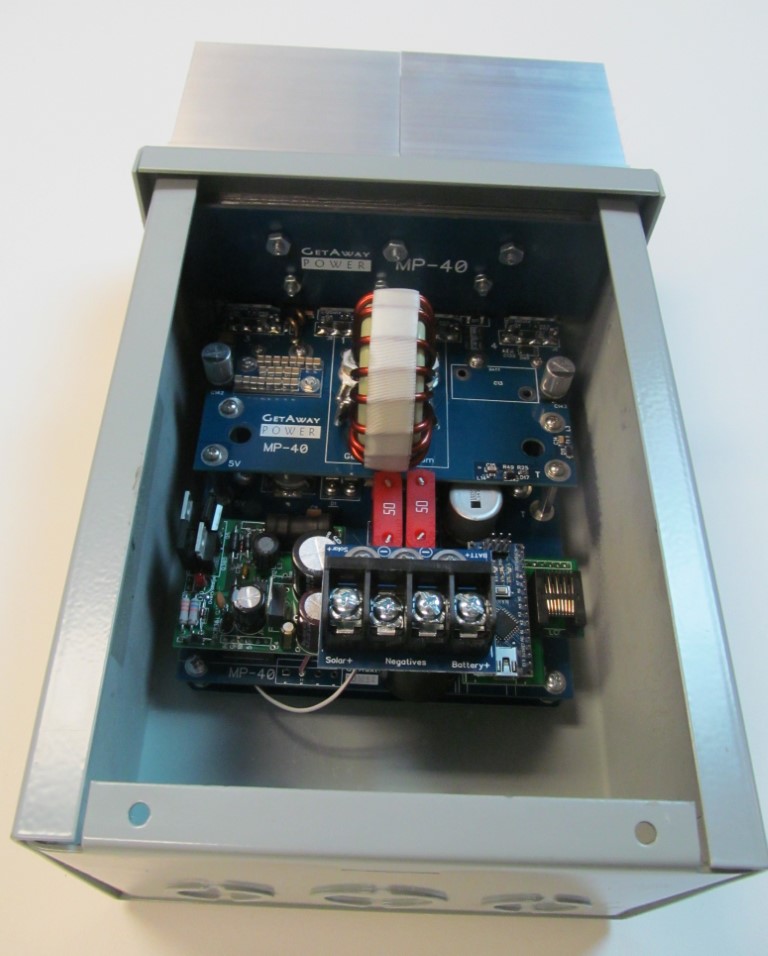

Inside the MP-40
****
