Wind/Solar
Hookup Basics and Beyond.
Click on an item above for more specific information

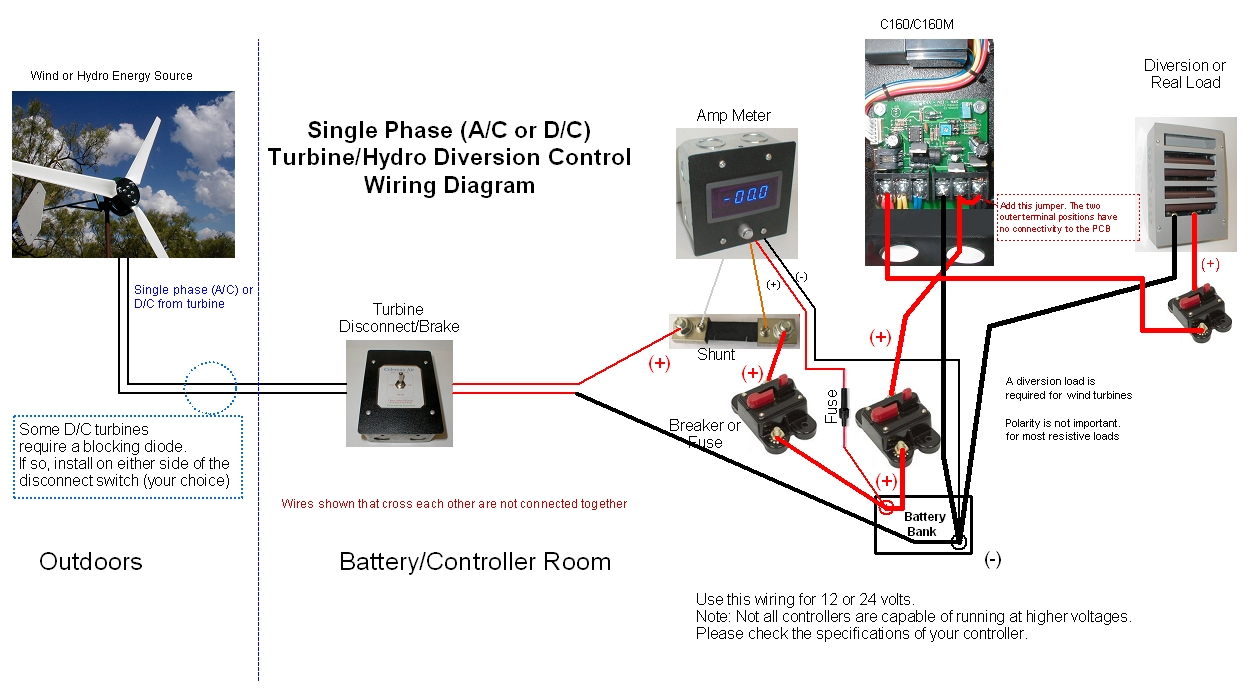

The image above shows the recommended wiring diagram for a single phase wind turbine or water hydro.
Click here for diagram using the Coleman Air C60M/C1060 controller with a 3 phase turbine. (Page 6.5)
Click here for diagram using the Coleman Air C150 controller with a 3 phase turbine. (Page 6)
Click here for a dual solar/wind diagram using the Coleman Air C440-HVM controller. (Page 7)
See our FAQ's for lots of great information.
Available manuals for each product we sell can be downloaded from the product's detail page.
